CMU 最优控制笔记 3：凸 MPC、航天器交会与无人机悬停

学习模型预测控制（MPC）时，我主要关注模型、代价和约束如何组成一个滚动求解的问题。这篇笔记重点整理凸 MPC，以及它与一次性轨迹优化和 LQR 的区别。

先修知识： LQR、线性系统离散化、凸二次规划与基本的稀疏矩阵运算。

阅读路线：

用航天器交会案例对照 LQR、凸轨迹优化和凸 MPC。
通过平面无人机悬停，连接非线性模型、局部线性化与离散模型。
推导堆叠预测矩阵，再把代价和约束整理为 OSQP 所需的形式。

笔记结合 CMU 16-745 的课程与作业整理，相关材料见课程作业页面。文中的代码片段保留学习时的实现，运行时还需使用对应作业的依赖与上下文。

其他学习视角可参考向阳的笔记和知乎我爱科研的整理

Lecture 10：凸模型预测控制#

LQR（线性二次调节器）是控制理论中的经典方法，但存在一些局限

仅适用于线性系统和局部线性化的非线性系统
代价函数需要是二次型
无法直接处理控制输入约束或状态约束

MPC通过滚动优化克服LQR的局限性，在每一个时间步求解一个有限时域的优化问题，考虑未来若干步的动力学和约束，并仅应用优化结果的第一步控制输入，下一时间步重新优化，具有以下优势

显式处理约束：将控制限幅、状态约束直接写入优化问题
可扩展性：MPC 框架可用于非线性问题，但非线性 MPC 通常不再是凸问题。本文的凸 MPC 依赖线性/仿射动力学、凸代价和凸约束，不能直接套用到任意非线性模型。
适应性：可实时响应环境变化（如障碍物移动）

HW2_Q3 Optimal Rendezvous and Docking航天器交汇#

接下来将针对SpaceX Dragon飞船与国际空间站（ISS）的交会对接，使用LQR、凸轨迹优化、凸MPC三种控制方法

状态变量 $x \in \mathbb{R}^6$ 为 $x,y,z$ 的位置和速度，控制变量 $u \in \mathbb{R}^3$ 为飞船三轴推力

\begin{align} x &= [r_x, r_y, r_z, v_x, v_y, v_z]^T,\\ u &= [t_x, t_y, t_z]^T \end{align}

系统的连续时间动力学模型 $\dot{x}=Ax+Bu$ 如下(Clohessy-Wiltshire 方程)

\begin{align} \dot{x} &= \begin{bmatrix}0 & 0 & 0 & 1 & 0 & 0 \\ 0 & 0 & 0 & 0 & 1 & 0 \\ 0 & 0 & 0 & 0 & 0 & 1\\ 3n^2 &0 & 0 & 0 & 2n &0 \\ 0 & 0 & 0 & -2n &0 & 0\\ 0 & 0 &-n^2 & 0 & 0 & 0 \end{bmatrix}x + \begin{bmatrix} 0 & 0 & 0 \\ 0 & 0 & 0 \\ 0 & 0 & 0 \\ 1 & 0 & 0 \\ 0 & 1 & 0 \\ 0 & 0 & 1 \end{bmatrix} u \end{align}

$A$ 矩阵包含轨道动力学效应（科里奥利力、离心力）
$n=\sqrt{\mu/a^3}$ 为轨道平均角速度。下方代码采用 $\mu=3.986004418\times10^{14}\,\mathrm{m^3/s^2}$ 、 $a=6971100\,\mathrm m$ ；复现时统一按代码参数，不混用其他轨道半径。
上式输入矩阵为单位加速度输入形式；若 $u$ 表示推力，应乘相应的质量倒数。下方代码使用 0.1*I(3)，复现时须核对这一输入缩放与单位。

Part A: Discretize the dynamics系统离散化#

使用增广矩阵进行系统离散化

1
function create_dynamics(dt::Real)::Tuple{Matrix,Matrix}
2
    mu = 3.986004418e14 # standard gravitational parameter
3
    a = 6971100.0       # semi-major axis of ISS
4
    n = sqrt(mu/a^3)    # mean motion
5

6
    # continuous time dynamics ẋ = Ax + Bu
7
    A = [0     0  0    1   0   0;
8
         0     0  0    0   1   0;
9
         0     0  0    0   0   1;
10
         3*n^2 0  0    0   2*n 0;
11
         0     0  0   -2*n 0   0;
12
         0     0 -n^2  0   0   0]
13

14
    B = Matrix([zeros(3,3);0.1*I(3)])
15

16
    # TODO: convert to discrete time X_{k+1} = Ad*x_k + Bd*u_k
17
    nx,nu =size(B)
18
    M = exp([A B; zeros(3,6) zeros(3,3)] * dt)  # 增广矩阵
19
    Ad = M[1:nx, 1:nx]
20
    Bd = M[1:nx, nx+1:nx+nu]
21
    return Ad, Bd
22
end

Part B#

使用有限时域 LQR跟踪给定的参考轨迹

\begin{align} \min_{x_{1:N},u_{1:N-1}} \quad & \sum_{i=1}^{N-1} \bigg[ \frac{1}{2} (x_i - x_{ref, i})^TQ(x_i - x_{ref, i}) + \frac{1}{2} u_i^TRu_i \bigg] + \frac{1}{2}(x_N- x_{ref, N})^TQ_f (x_N- x_{ref, N})\\ \text{st} \quad & x_1 = x_{\text{IC}} \\ & x_{i+1} = A x_i + Bu_i \quad \text{for } i = 1,2,\ldots,N-1 \end{align}

下方实现使用 $u_i=-K_i(x_i-x_{ref,i})$ 并进行限幅。它是围绕参考状态的反馈实验；对一般参考轨迹，仅计算调节器增益并减去参考状态，不足以求解上面完整的跟踪最优化问题，还需要参考输入/仿射前馈项及轨迹可行性处理。限幅也会改变无约束 LQR 的最优性与稳定性结论。

1
# TODO: FHLQR
2
function fhlqr(A::Matrix, # A matrix
3
           B::Matrix, # B matrix
4
           Q::Matrix, # cost weight
5
           R::Matrix, # cost weight
6
           Qf::Matrix,# term cost weight
7
           N::Int64   # horizon size
8
           )::Tuple{Vector{Matrix{Float64}}, Vector{Matrix{Float64}}} # return two matrices
9

10
    # check sizes of everything
11
    nx,nu = size(B)
12
    @assert size(A) == (nx, nx)
13
    @assert size(Q) == (nx, nx)
14
    @assert size(R) == (nu, nu)
15
    @assert size(Qf) == (nx, nx)
16

17
    # instantiate S and K
18
    P = [zeros(nx,nx) for i = 1:N]
19
    K = [zeros(nu,nx) for i = 1:N-1]
20

21
    # initialize S[N] with Qf
22
    P[N] = deepcopy(Qf)
23

24
    # Ricatti
25
    for n in N-1:-1:1
26
        # TODO
27
        K[n] = (R+B'*P[n+1]B)\B'*P[n+1]*A
28
        P[n] = Q + A'*P[n+1]*(A-B*K[n])
29
    end
30

31
    return P, K
32
end
33

34
# Solve LQR
35
_, K = fhlqr(A,B,Q,R,Qf,N)
36

37
# simulation
38
X_sim = [zeros(nx) for i = 1:N]
39
U_sim = [zeros(nu) for i = 1:N-1]
40
X_sim[1] = x0
41
for i = 1:(N-1)
42
    # TODO: put LQR control law here
43
    # make sure to clamp
44
    U_sim[i] = clamp.(-K[i]*(X_sim[i]-X_ref[i]),u_min,u_max)
45

46
    # simulate 1 step
47
    X_sim[i+1] = A*X_sim[i] + B*U_sim[i]
48
end

Part C: Convex Trajectory Optimization#

\begin{align} \min_{x_{1:N},u_{1:N-1}} \quad & \sum_{i=1}^{N-1} \bigg[ \frac{1}{2} (x_i - x_{ref, i})^TQ(x_i - x_{ref, i}) + \frac{1}{2} u_i^TRu_i \bigg] \\ \text{st} \quad & x_1 = x_{\text{IC}} \\ & x_{i+1} = A x_i + Bu_i \quad \text{for } i = 1,2,\ldots,N-1 \\ & u_{min} \leq u_i \leq u_{max} \quad \text{for } i = 1,2,\ldots,N-1 \\ & x_i[2] \leq x_{goal} [2]\quad \text{for } i = 1,2,\ldots,N \\ & x_N = x_{goal} \end{align}

1
"""
2
Xcvx,Ucvx = convex_trajopt(A,B,X_ref,x0,xg,u_min,u_max,N)
3

4
setup and solve the above optimization problem, returning
5
the solutions X and U, after first converting them to
6
vectors of vectors with vec_from_mat(X.value)
7
"""
8
function convex_trajopt(A::Matrix, # discrete dynamics A
9
                        B::Matrix, # discrete dynamics B
10
                        X_ref::Vector{Vector{Float64}}, # reference trajectory
11
                        x0::Vector, # initial condition
12
                        xg::Vector, # goal state
13
                        u_min::Vector, # lower bound on u
14
                        u_max::Vector, # upper bound on u
15
                        N::Int64, # length of trajectory
16
                        )::Tuple{Vector{Vector{Float64}}, Vector{Vector{Float64}}} # return Xcvx,Ucvx
17

18
    # get our sizes for state and control
19
    nx,nu = size(B)
20

21
    @assert size(A) == (nx, nx)
22
    @assert length(x0) == nx
23
    @assert length(xg) == nx
24

25
    # LQR cost
26
    Q = diagm(ones(nx))
27
    R = diagm(ones(nu))
28

29
    # variables we are solving for
30
    X = cvx.Variable(nx,N)
31
    U = cvx.Variable(nu,N-1)
32

33
    # TODO: implement cost
34
    obj = 0
35
    for k =1:N-1
36
        x_k,u_k = X[:,k]-X_ref[k],U[:,k]
37
        obj += 0.5*cvx.quadform(x_k,Q)+0.5*cvx.quadform(u_k,R)
38
    end
39

40
    # create problem with objective
41
    prob = cvx.minimize(obj)
42

43
    # TODO: add constraints with prob.constraints = vcat(prob.constraints, ...)
44
    prob.constraints = vcat(prob.constraints,(X[:,1]==x0))
45
    prob.constraints = vcat(prob.constraints,(X[:,end]==xg))
46
    for i =1:N-1
47
        #dynamics constraints
48
        prob.constraints = vcat(prob.constraints,(X[:,i+1]==A*X[:,i]+B*U[:,i]))
49
        # control constraint
50
        prob.constraints = vcat(prob.constraints,(U[:,i]<=u_max))
51
        prob.constraints = vcat(prob.constraints,(U[:,i]>=u_min))
52
    end
53

54
    for i = 1:N
55
        prob.constraints = vcat(prob.constraints,(X[2,i]<=xg[2]))
56
    end
57
    cvx.solve!(prob, ECOS.Optimizer; silent = true)
58

59
    X = X.value
60
    U = U.value
61

62
    Xcvx = vec_from_mat(X)
63
    Ucvx = vec_from_mat(U)
64

65
    return Xcvx, Ucvx
66
end

Part D: Convex MPC#

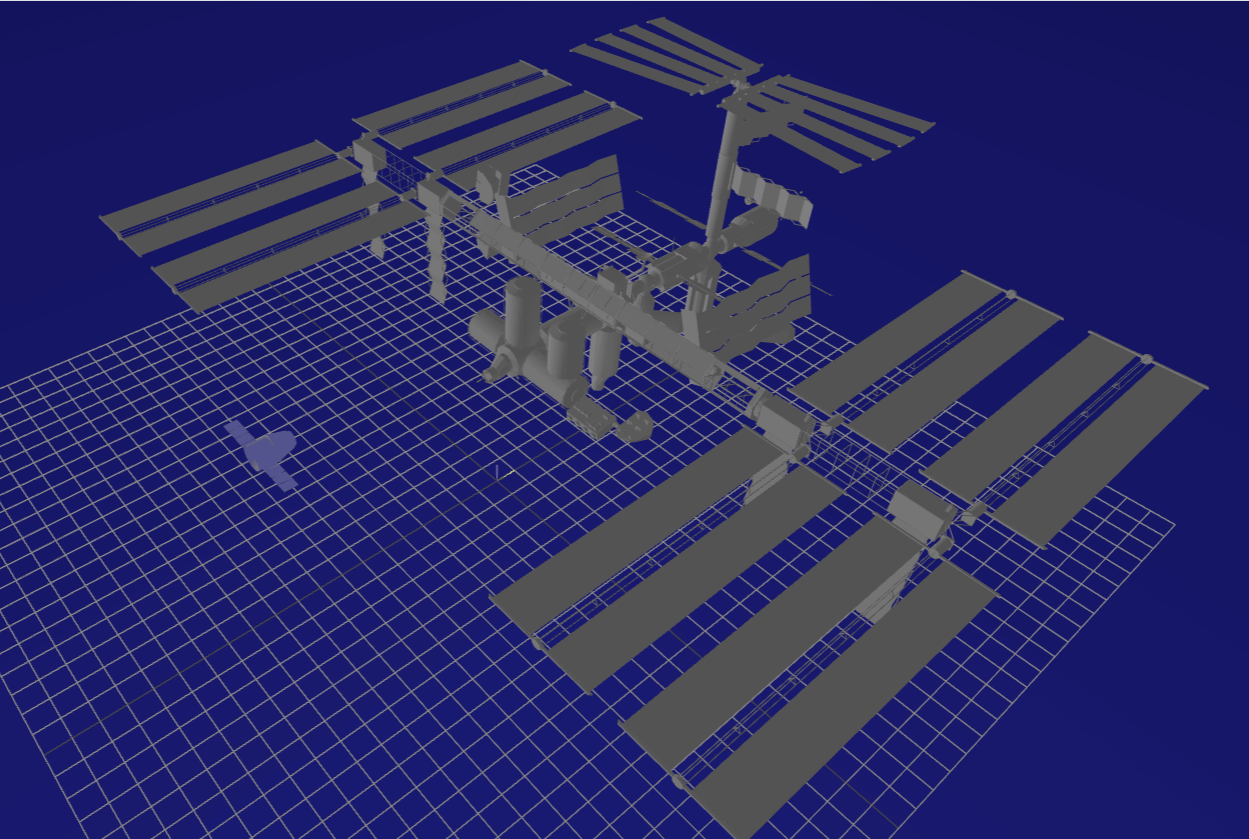

在航天器交会对接任务中，（Part C）开环控制无法处理系统中的不确定性，MPC通过滚动时域优化使用反馈控制，弥补“sim-to-real gap”

给定当前时刻的参考轨迹窗口 $\tilde{x}_{ref} = x_{ref}[i,(i + N_{mpc} - 1)]$ ，MPC将求解以下的凸优化问题

\begin{align} \min_{x_{1:N},u_{1:N-1}} \quad & \sum_{i=1}^{N-1} \bigg[ \frac{1}{2} (x_i - \tilde{x}_{ref, i})^TQ({x}_i - \tilde{x}_{ref, i}) + \frac{1}{2} u_i^TRu_i \bigg] + \frac{1}{2}(x_N- \tilde{x}_{ref, N})^TQ ({x}_N- \tilde{x}_{ref, N})\\ \text{st} \quad & x_1 = x_{\text{IC}} \\ & x_{i+1} = A x_i + Bu_i \quad \text{for } i = 1,2,\ldots,N-1 \\ & u_{min} \leq u_i \leq u_{max} \quad \text{for } i = 1,2,\ldots,N-1 \\ & x_i[2] \leq x_{goal} [2]\quad \text{for } i = 1,2,\ldots,N \end{align}

参数说明：

$Q,R,Q_f$ :状态、控制输入和终端状态的权重矩阵
$N_mpc$ ：预测时域长度
$x_\mathbf{IC}$ :当前状态估计（来自传感器滤波）

1
"""
2
`u = convex_mpc(A,B,X_ref_window,xic,xg,u_min,u_max,N_mpc)`
3

4
setup and solve the above optimization problem, returning the
5
first control u_1 from the solution (should be a length nu
6
Vector{Float64}).
7
"""
8
function convex_mpc(A::Matrix, # discrete dynamics matrix A
9
                    B::Matrix, # discrete dynamics matrix B
10
                    X_ref_window::Vector{Vector{Float64}}, # reference trajectory for this window
11
                    xic::Vector, # current state x
12
                    xg::Vector, # goal state
13
                    u_min::Vector, # lower bound on u
14
                    u_max::Vector, # upper bound on u
15
                    N_mpc::Int64,  # length of MPC window (horizon)
16
                    )::Vector{Float64} # return the first control command of the solved policy
17

18
    # get our sizes for state and control
19
    nx,nu = size(B)
20

21
    # check sizes
22
    @assert size(A) == (nx, nx)
23
    @assert length(xic) == nx
24
    @assert length(xg) == nx
25
    @assert length(X_ref_window) == N_mpc
26

27
    # LQR cost
28
    Q = diagm(ones(nx))
29
    R = diagm(ones(nu))
30
    Qf = 10*Q
31

32
    # variables we are solving for
33
    X = cvx.Variable(nx,N_mpc)
34
    U = cvx.Variable(nu,N_mpc-1)
35

36
    # TODO: implement cost function
37
    obj = cvx.quadform(X[:,N_mpc]-X_ref_window[N_mpc],Qf)
38
    for i = 1:N_mpc-1
39
        obj +=cvx.quadform(X[:,i]-X_ref_window[i],Q)+cvx.quadform(U[:,i],R)
40
    end
41
    # create problem with objective
42
    prob = cvx.minimize(obj)
43

44
    # TODO: add constraints with prob.constraints = vcat(prob.constraints, ...)
45
    prob.constraints = vcat(prob.constraints,(X[:,1]==xic))
46
    for i =1:N_mpc-1
47
        #dynamics constraints
48
        prob.constraints = vcat(prob.constraints,(X[:,i+1]==A*X[:,i]+B*U[:,i]))
49
        # control constraint
50
        prob.constraints = vcat(prob.constraints,(U[:,i]<=u_max))
51
        prob.constraints = vcat(prob.constraints,(U[:,i]>=u_min))
52
    end
53

54
    for i = 1:N_mpc
55
        prob.constraints = vcat(prob.constraints,(X[2,i]<=xg[2]))
56
    end
57

58
    # solve problem
59
    cvx.solve!(prob, ECOS.Optimizer; silent = true)
60

61
    # get X and U solutions
62
    X = X.value
63
    U = U.value
64

65
    # return first control U
66
    return U[:,1]
67
end

无人机悬停案例#

平面无人机动力学

为与下方实现一致，这里令 $l$ 表示两电机间距，因此每侧推力到质心的力臂为 $l/2$ 。

\begin{align} \ddot{x}&=\frac{1}{m}(u_1+u_2)sin\theta\\ \ddot{y}&=\frac{1}{m}(u_1+u_2)cos\theta-g\\ \ddot{\theta}&=\frac{l}{2J}(u_2-u_1)\\ \end{align}

在平衡点线性化 $(u_1=u_2 =\frac{1}{2}mg,\theta=0)$ 写成矩阵形式

\Longrightarrow \begin{align} \Delta\ddot{x}&=g\theta\\ \Delta\ddot{y}&=\frac{1}{m}(\Delta u_1+\Delta u_2)\\ \Delta\ddot{\theta}&=\frac{l}{2J}(\Delta u_2-\Delta u_1)\\ \end{align}

\begin{align} \begin{bmatrix}\Delta\dot{x}\\ \Delta\dot{y} \\ \Delta\dot{\theta} \\\Delta\ddot{x}\\ \Delta\ddot{y} \\ \Delta\ddot{\theta}\end{bmatrix}= \begin{bmatrix}0&0 &0 & 1&0 &0 \\ 0& 0&0 &0 &1 &0 \\0&0 &0 &0 &0 &1\\ 0&0&g&0&0&0\\0&0&0&0&0&0\\0&0&0&0&0&0\end{bmatrix} \begin{bmatrix}{\Delta x}\\ {\Delta y} \\ {\Delta \theta}\\\Delta \dot{x}\\ \Delta \dot{y} \\ \Delta\dot{\theta} \end{bmatrix} + \begin{bmatrix}0&0\\0&0 \\0&0 \\0&0 \\ \frac{1}{m}&\frac{1}{m}\\-\frac{l}{2J}&\frac{l}{2J}\end{bmatrix} \begin{bmatrix}\Delta u_1\\ \Delta u_2\end{bmatrix} \end{align}

1
using LinearAlgebra
2
using ForwardDiff
3
using OSQP
4
#Model parameters
5
g = 9.81 #m/s^2
6
m = 1.0 #kg
7
ℓ = 0.3 #meters
8
J = 0.2*m*ℓ*ℓ
9

10
h = 0.05 #time step (20 Hz)
11

12
#Planar Quadrotor Dynamics
13
function quad_dynamics(x,u)
14
    θ = x[3]
15
    ẍ = (1/m)*(u[1] + u[2])*sin(θ)
16
    ÿ = (1/m)*(u[1] + u[2])*cos(θ) - g
17
    θ̈ = (1/J)*(ℓ/2)*(u[2] - u[1])
18
    return [x[4:6]; ẍ; ÿ; θ̈]
19
end
20
function quad_dynamics_rk4(x,u)
21
    #RK4 integration with zero-order hold on u
22
    f1 = quad_dynamics(x, u)
23
    f2 = quad_dynamics(x + 0.5*h*f1, u)
24
    f3 = quad_dynamics(x + 0.5*h*f2, u)
25
    f4 = quad_dynamics(x + h*f3, u)
26
    return x + (h/6.0)*(f1 + 2*f2 + 2*f3 + f4)
27
end
28

29
#Linearized dynamics for hovering
30
x_hover = zeros(6)
31
u_hover = [0.5*m*g; 0.5*m*g]
32
A = ForwardDiff.jacobian(x->quad_dynamics_rk4(x,u_hover),x_hover);
33
B = ForwardDiff.jacobian(u->quad_dynamics_rk4(x_hover,u),u_hover);
34
quad_dynamics_rk4(x_hover, u_hover)

MPC#

离散时不变系统的状态空间方程

{x}_{k+1}=Ax_k+Bu_k

定义预测时域为 $p$ ，状态维度为 $n_x$ ，输入维度为 $n_u$ 。堆叠变量为

X_k=\begin{bmatrix}x_{k+1|k}\\\vdots\\x_{k+p|k}\end{bmatrix}\in\mathbb R^{pn_x},\qquad U_k=\begin{bmatrix}u_{k|k}\\\vdots\\u_{k+p-1|k}\end{bmatrix}\in\mathbb R^{pn_u}.

逐步代入动力学，可以得到

x_{k+i|k}=A^i x_{k|k}+\sum_{j=0}^{i-1}A^{i-1-j}B u_{k+j|k}, \qquad i=1,\ldots,p.

因此 $X_k=\Phi x_{k|k}+\Gamma U_k$ ，其中

\Phi=\begin{bmatrix}A\\A^2\\\vdots\\A^p\end{bmatrix},\qquad \Gamma=\begin{bmatrix} B&0&\cdots&0\\ AB&B&\cdots&0\\ \vdots&\vdots&\ddots&\vdots\\ A^{p-1}B&A^{p-2}B&\cdots&B \end{bmatrix}.

对于零参考状态的调节问题，选取

J=\frac12\sum_{i=1}^{p-1}x_{k+i|k}^{\top}Qx_{k+i|k} +\frac12x_{k+p|k}^{\top}Q_Nx_{k+p|k} +\frac12\sum_{i=0}^{p-1}u_{k+i|k}^{\top}Ru_{k+i|k}.

令 $\Omega=\operatorname{diag}(Q,\ldots,Q,Q_N)$ 、 $\Psi=\operatorname{diag}(R,\ldots,R)$ ，则

J=\frac12X_k^\top\Omega X_k+\frac12U_k^\top\Psi U_k =\frac12U_k^\top H U_k+U_k^\top F x_{k|k}+\text{const},

H=\Gamma^\top\Omega\Gamma+\Psi,\qquad F=\Gamma^\top\Omega\Phi.

常数项只与当前状态有关，不影响最优输入。此前笔记的最后一步输入索引和 $\Gamma$ 最后一行次序有误，已按上述递推统一。跟踪非零参考时，还需把参考轨迹引入代价中的线性项。

OSQP 求解器的使用#

OSQP 求解器是一个用于求解凸二次规划（形式如下）的数值优化软件包

\begin{split}\begin{array}{ll} \text{minimize} & \frac{1}{2} x^T P x + q^T x \\ \text{subject to} & l \leq A x \leq u \end{array}\end{split}

其中 $x$ 是优化变量， $P\in\mathbf S_+^n$ 是对称半正定矩阵。

考虑一个线性时不变动力学系统到某个参考状 $x_r\in \mathcal{R}^{n_x}$ 的问题

\begin{split}\begin{array}{ll} \text{minimize} & (x_N-x_r)^T Q_N (x_N-x_r) + \sum_{k=0}^{N-1}\left[(x_k-x_r)^T Q (x_k-x_r) + u_k^T R u_k\right] \\ \text{subject to} & x_{k+1} = A x_k + B u_k \\ & x_{\rm min} \le x_k \le x_{\rm max} \\ & u_{\rm min} \le u_k \le u_{\rm max} \\ & x_0 = \bar{x} \end{array}\end{split}

1.给出系统的 $Q,R,Q_N,A,B$

1
Nx = 6     # number of state
2
Nu = 2     # number of controls
3
Tfinal = 10.0 # final time
4
Nt = Int(Tfinal/h)+1    # number of time steps
5
thist = Array(range(0,h*(Nt-1), step=h));
6

7
# Cost weights
8
Q = Array(1.0*I(Nx));
9
R = Array(.01*I(Nu));
10
Qn = Array(1.0*I(Nx));
11

12
#Thrust limits
13
umin = [0.2*m*g; 0.2*m*g]
14
umax = [0.6*m*g; 0.6*m*g]

转换成标准 QP 问题

优化变量

z=[u_0^T,x_1^T,u_1^T,x_2^T,\dots,u_{p-1}^T,x_p^T]^\top

J=z^\top Wz-2c^\top z+\mathrm{const},\qquad W=\operatorname{diag}(R,Q,\ldots,R,Q_N),\quad c=[0;Qx_r;\ldots;0;Q_Nx_r].

对于这里不含 $1/2$ 的代价，OSQP 应取 $P=2W$ 、 $q=-2c$ ；跟踪代价的线性项是负号。以下悬停示例改用含 $1/2$ 的误差代价，参考是平衡点，变量依次为 $[\Delta u_0;\Delta x_1;\ldots]$ ，因此 H=W、b=0。此示例只添加推力限制，未添加上面通式的状态限制。

原代码的 rob/prob 名称不一致，且缺少 Nh、终端权重定义和非零初态右端项；已改为明确分块组装。依赖前面的离散模型和参数；尚未在锁定的 OSQP.jl 环境中运行，下面提供建模示例而非经过仿真验证的控制器。

1
using SparseArrays
2
Nh = 20
3
nb = Nu + Nx
4
uidx(k) = ((k-1)*nb+1):((k-1)*nb+Nu)
5
xidx(k) = ((k-1)*nb+Nu+1):(k*nb)
6
H = spzeros(Nh*nb, Nh*nb)
7
C = spzeros(Nh*Nx, Nh*nb)
8
S = spzeros(Nh*Nu, Nh*nb)  # 提取输入
9
for k in 1:Nh
10
    rows = ((k-1)*Nx+1):(k*Nx)
11
    H[uidx(k), uidx(k)] = R
12
    H[xidx(k), xidx(k)] = k == Nh ? Qn : Q
13
    C[rows, uidx(k)] = B
14
    C[rows, xidx(k)] = -Matrix{Float64}(I, Nx, Nx)
15
    if k > 1
16
        C[rows, xidx(k-1)] = A
17
    end
18
    S[((k-1)*Nu+1):(k*Nu), uidx(k)] = Matrix{Float64}(I, Nu, Nu)
19
end
20
b = zeros(Nh*nb)
21
D = [C; S]
22
rhs = zeros(Nh*Nx)
23
lb = [rhs; repeat(umin-u_hover, Nh)]
24
ub = [rhs; repeat(umax-u_hover, Nh)]
25
prob = OSQP.Model()
26
OSQP.setup!(prob; P=H, q=b, A=D, l=lb, u=ub, verbose=false)
27

28
function hover_control(x_now)
29
    # B*δu₀ - δx₁ = -A*δx₀，初态必须进入每次优化。
30
    rhs[1:Nx] = -A*(x_now-x_hover)
31
    lb[1:Nh*Nx] = rhs
32
    ub[1:Nh*Nx] = rhs
33
    OSQP.update!(prob; l=lb, u=ub)
34
    result = OSQP.solve!(prob)
35
    # 演示采用严格成功判据；失败时交由调用方处理，不能盲用 result.x。
36
    result.info.status == :Solved || error("QP 未成功求解：$(result.info.status)")
37
    return u_hover + result.x[uidx(1)]
38
end

接口和求解状态见 OSQP 的 Julia 文档与所安装的 OSQP.jl 版本。真正的 MPC 仿真还需每步调用控制器、用真实模型推进，并记录约束残差、闭环状态与求解耗时；求解成功不等于非线性系统一定稳定。

整理与核查说明#

本笔记原有许可为 CC BY 4.0。引用的课程材料、代码和图片仍须遵守其各自的许可。

核查状态：部分验证（2026-10-04）。 Julia 1.10.10 验证 MPC 分块尺寸、初态残差及 Hessian；未执行完整 OSQP 和航天器实验。

2026-10-04 整理时修正了已定位的公式和实现问题。文中的图片、动画和输出保留自学习时的实验记录，不代表修订后的代码已经完整重跑。作业片段依赖原项目环境，不能直接作为完整可运行教程；具体核查范围与尚未复现事项见正文。

langxin11 · 学习笔记

Lecture 10：凸模型预测控制#

HW2_Q3 Optimal Rendezvous and Docking航天器交汇#

Part A: Discretize the dynamics系统离散化#

Part B#

Part C: Convex Trajectory Optimization#

Part D: Convex MPC#

无人机悬停案例#

MPC#

OSQP 求解器的使用#

整理与核查说明#

继续阅读

换条路线

langxin11 · 学习笔记

Lecture 10：凸模型预测控制#

HW2_Q3 Optimal Rendezvous and Docking航天器交汇#

Part A: Discretize the dynamics系统离散化#

Part B#

Part C: Convex Trajectory Optimization#

Part D: Convex MPC#

无人机悬停案例#

MPC#

OSQP 求解器的使用#

整理与核查说明#

分享文章

沿着主题读

换条路线
